process heat applications

The development of advanced higher temperature nuclear reactors creates the means to expand the use of nuclear energy into a variety of industrial and transport sectors (in addition to electricity generation), by supplying clean process heat to produce chemical products, liquid petroleum fuels and hydrogen. The nuclear heat source must still meet modern reactor design standards, be economic, match the process technical needs and reliably produce the required temperatures.

South Africa’s Pebble Bed Modular Reactor (PBMR) technology fits each of these requirements. Because of its very high reactor outlet temperatures of up to 950°C, the heat from the PBMR can be applied for a variety of industrial process applications. For example, the PBMR produced steam can be used to extract oil from Oil Sands, and for many other petrochemical industrial applications where fossil fuels are currently used as the primary source of process steam. Alternatively, the PBMR produced hydrogen can be used for upgrading coal and heavy crude oils into usable products or for transportation fuel in the future, thereby relieving pressure on natural gas supply (the source of most hydrogen produced today).

These applications were investigated with potential customers in global markets by the PBMR based team led by PBMR, Westinghouse and Shaw. Pre-conceptual work has confirmed that the reactor design developed for power plant applications can be readily integrated into process heat applications. The characteristic robustness and flexibility of the core design means that only minimal modifications to interfaces are necessary to meet a broad range of process heat application requirements.

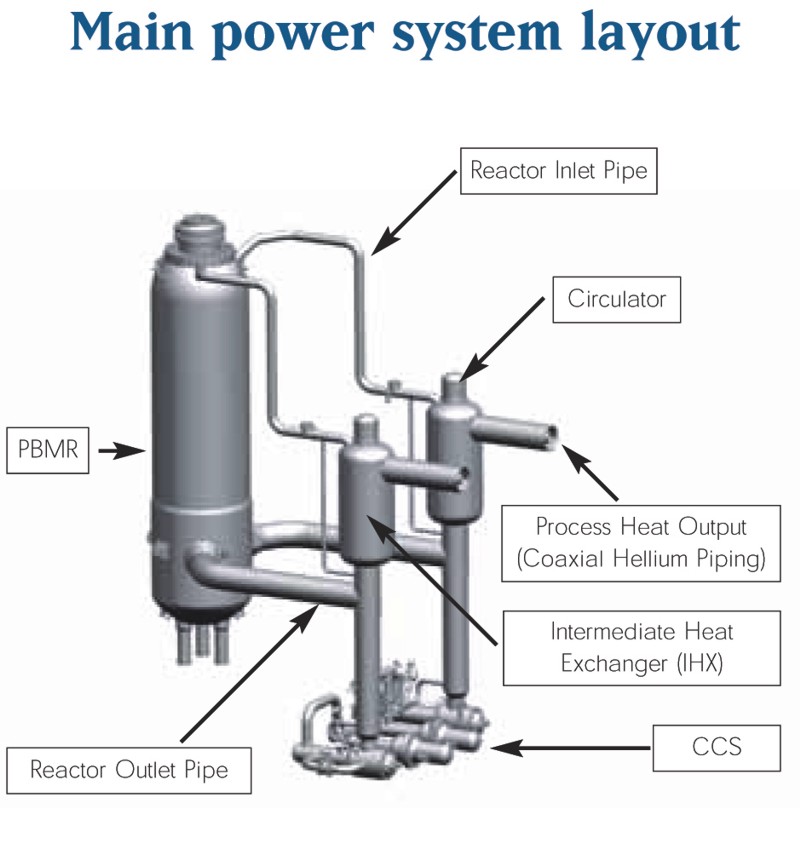

The schematic shows one such PBMR Process Heat configuration. The hot helium exits the bottom of the reactor and passes through helium-to-helium intermediate heat exchangers (IHXs); circulators located on top of the heat exchangers drive the gas back into the reactor inlet. Helium in an intermediate loop (not shown) transfers the heat to the process application via the concentric pipes shown. Requirements for the IHX will be similar to those for compact heat exchangers being developed for the South African Demonstration Power Plant (DPP).
Two PBMR process heat configurations are currently defined: the first generates intermediate temperature helium (in the 750°C range) for high pressure steam production with cogeneration; the second can deliver high temperature helium at up to 950°C for high temperature process applications (notably steam methane reforming, high temperature steam electrolysis and thermo-chemical processes for hydrogen production).

Why PBMR for process heat?
PBMR technology has unique features which make it well-suited as heat source for process applications:

  • Access to high-temperature process heat markets due to its ability to provide process temperatures up to 900°C (reactor outlet of 950°), plus cogenerated power and/or low temperature desalination processes.
  • Well-matched to industrial process sizes, up to 500 MW(t)
  • Ability to co-locate with industrial process plants due to enhanced safety characteristics and small exclusion zone.
  • Deployment within a decade since it builds on the development and design work carried out on the South African Demonstration Power Plant (DPP) initiative.
  • Economic benefits include displacement of premium fossil fuels, value from avoided CO2 emissions, high reliability, improved availability due to continuous online refueling, short construction times and reduced financing costs during construction.

Product Range
The South African PBMR project entailed the design and construction of a 165 MW(e)/400 MW(t) power plant at Koeberg near Cape Town and a fuel plant at Pelindaba near Pretoria. The DPP intended to demonstrate the combination of the PBMR reactor with a full-scale Brayton cycle gas turbine as the basis of the proposed multi-module electricity plant. It is this development program that provided the technology platform for the Process Heat Plants (PHPs).

The PHPs will be based on the DPP reactor design; and core dimensions will be kept the same for different process heat applications by designing for a standardized fleet enveloping a range of requirements. The PHP was intended to operate at power levels of up to 500 MW(t) with reactor outlet temperatures up to 950°C. Process steam delivery is the near-term entry market application with hydrogen delivery as the follow-on. Hence, development work is focused on two time frames and technology windows:
  • Applications operating at reactor outlet temperatures less than 800°C to produce high-pressure steam and cogeneration. Component engineering development requirements and application integration engineering requirements are such that deployment in a decade will be feasible.
  • The follow-on development phase, focusing on the next decade, will meet the requirements for operating at reactor outlet temperatures up to 950°C. This phase matches timeframes for associated developments in high-temperature materials and hydrogen production processes including thermo-chemical water-splitting processes.

Value proposition
Attractive applications for nuclear process heat are driven primarily by the opportunity to displace natural gas and other premium fuels, and to respond to incentives to reduce CO2 emissions. Even with conservatively low forecasts for growth in long-term gas prices, clear commercial benefit exists in reducing exposure to the volatility and insecurity of single sources of energy supply. Economic assessments of PBMR process heat applications, based on current trends, indicate that PBMR will be competitive in many markets, especially markets with high premium fuel costs and CO2 emission constraints.

Work ongoing and completed
Based on collaborations with several potential users of this technology, PBMR and its partners in the nuclear and process industry have initiated and completed several initiatives including:
  • Preliminary definition of process heat delivery systems for intermediate and high temperature applications

  • Survey of high temperature process applications and economics

  • Initiation of pre-licensing initiatives in the US and Canada to prepare for early projects

  • Cooperation with universities to support application and market studies, support energy policy development, and establish outreach programs

  • Initial information exchange with government agencies developing energy policy and nuclear policy

  • Definition of first of fleet projects and project requirements

  • Development of project implementation requirements and planning

  • Economic analysis of various applications

  • Quantification of long term technology benefits in terms of CO2 and natural gas displacement

  • Formation of an industry advisory group

  • Definition of technology development needed for various hydrogen applications

  • Definition of industrial nuclear cogeneration and desalination plant configurations

  • Definition of oil sands in-situ and surface mining nuclear cogeneration configurations

In South Africa and elsewhere, application studies have confirmed the potential for integrating the PBMR into process plants to meet process steam and electricity demands. In Canada, there is interest from the oil sands industry in using the PBMR to produce steam at the temperature and associated pressures needed for “in-situ” applications to extract bitumen from oil sands displacing intended gas-fired plants that are currently used.

In the USA, PBMR, Westinghouse and Shaw were the lead principles in a world class team advancing the Next Generation Nuclear Plant (NGNP) Project, which is based on developing and demonstrating HTGR technology for a broad range of industrial process heat applications, including hydrogen production.
